Sandvik D245S – Reliable Rotary Blasthole Drill for High-Productivity Mining

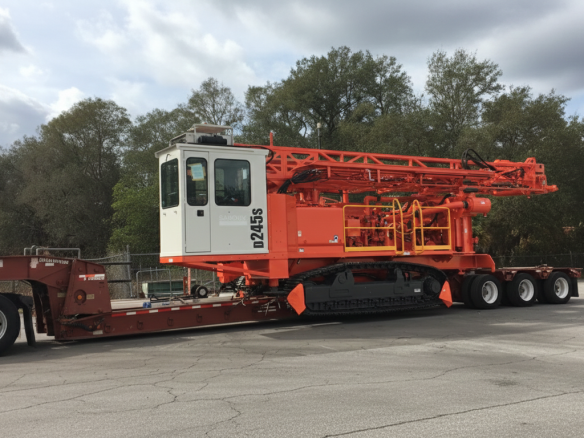

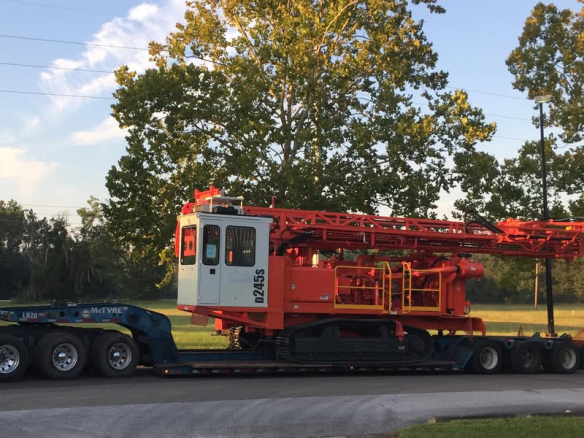

The Sandvik D245S is a robust and reliable rotary blasthole drill designed for large-scale mining and quarry operations. Built with proven Sandvik engineering, it delivers stable and efficient drilling performance even in tough working conditions, making it a dependable choice for achieving high productivity with minimal downtime.

🔹 Our Available Units

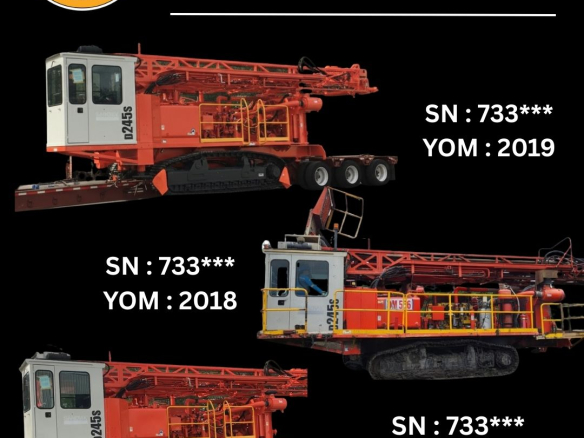

We currently offer 3 units of Sandvik D245S, all well-maintained and ready for operation, with different production years to match your budget and operational needs:

• 1 Unit – Production Year 2019
• 1 Unit – Production Year 2018
• 1 Unit – Production Year 2017

D25KS – Technical Specifications (Metric)

Drilling Capacity

• Hole diameter: 140 – 172 mm
• Maximum hole depth – single-pass: 27 m
• First pass capability – single-pass: 8.65 m

Feed System

• Maximum pulldown force: 124 kN
• Maximum bit load: 143 kN
• Feed rate up/down – single-pass:
  0 – 32 m/min

Engine

• Engine model: CAT C18*
• Rated power: 469 kW
• Engine speed: 1,800 rpm

High-Pressure Air System

• Air capacity: 32.8 m³/min
• DTH operating pressure: 24.1 bar

Hoist

Hoist speed: 0 – 68.3 m/min
